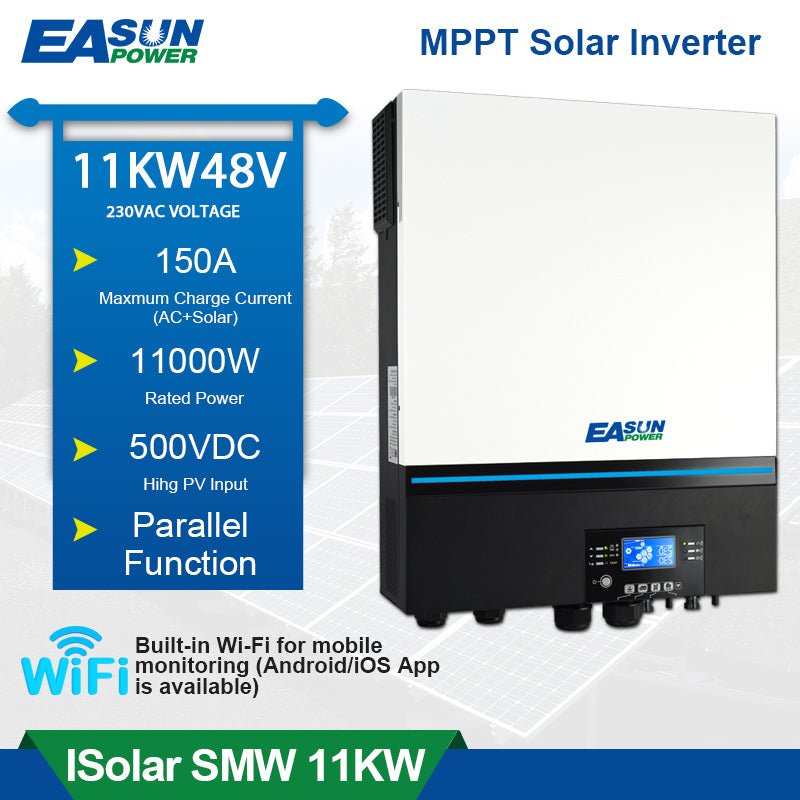

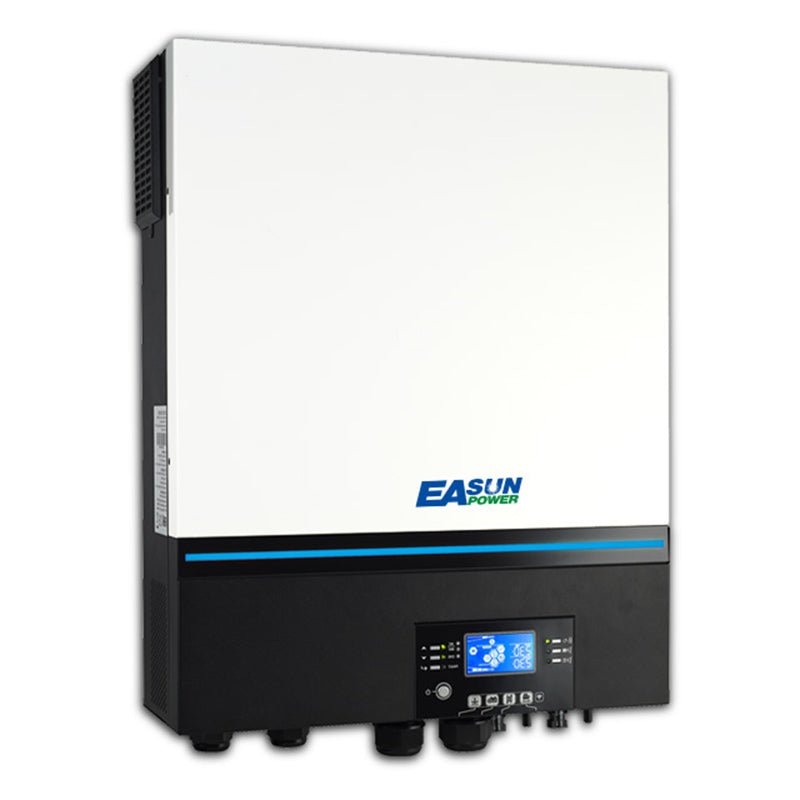

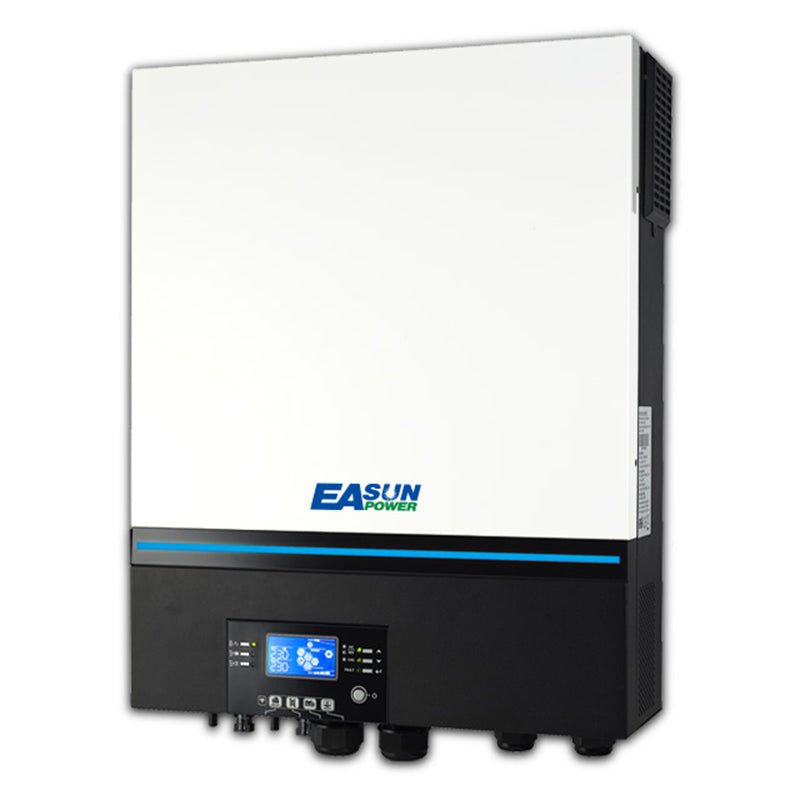

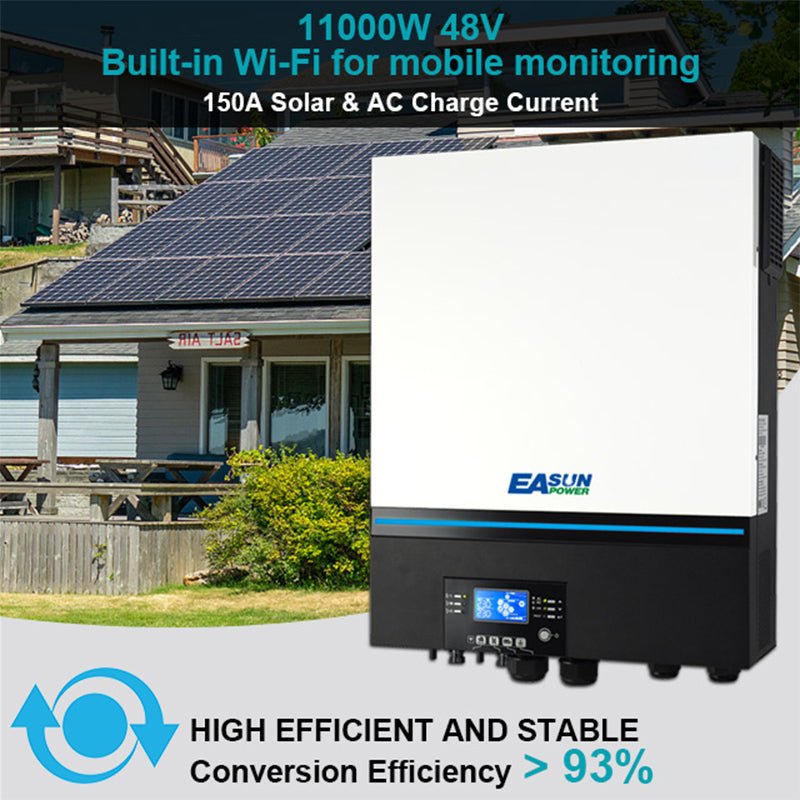

Easun 11KW 11000W 48V Hybrid Solar Inverter Off-Grid MPPT 150A 230VAC WiFi
Easun 11KW 11000W 48V Hybrid Solar Inverter Off-Grid MPPT 150A 230VAC WiFi
About Shipping
About Shipping
1. Free Shipping
2. Usually delivery within 3-10 workd days.
Return & Refund
Return & Refund
30-Day Return for No Reson
We have a 30-day return policy, which means you have 30 days from the date you receive the item to request a return.
To be eligible for a return, your item must be in the same condition as when you received it, unworn or unused, with tags, and in its original packaging. You will also need a receipt or proof of purchase.
To begin your return, you can contact us via email or whatsapp, but you must make a note of your order number and provide us with the return shipping number within 24 hours of confirming acceptance of the return, as well as instructions on how and where to send your package and a link to check the track of the shipping receipt.
All items sent back to us without first requesting a return will not be accepted.
Damages and problems
Please check your order first after receiving it to make sure it is in good condition. If the item is defective, damaged or you received the wrong item, please contact us immediately so we can assess the problem and correct it.
Exceptions/non-returnable items
Certain types of items cannot be returned, such as perishable items (e.g. food, flowers or plants), custom products (e.g. special orders or personalized items) and personal care items (e.g. beauty products). We also do not accept returns of hazardous materials, flammable liquids or gases. If you have questions or concerns about your specific item, please contact us.
Exchanges
The fastest way to make sure you get what you want is to return your item and purchase it separately for the new item once the return is accepted.
Refunds
Once we have received and inspected your return, we will notify you and let you know if the refund has been approved. If approved, you will automatically receive a refund in the form of your original payment within 48 hours except special issue. Please keep in mind that it will also take some time for your bank or credit card company to process and post the refund.
If the return is caused by the consumer, the consumer should be responsible for the shipping costs. The exact cost should depend on the courier company you choose.
If the goods received are damaged or incorrect due to our fault, and the consumer is not responsible for the shipping costs for this reason.
If still any questions, please contact:
Email: jessica@easunpower.com
Tel/Whatsapp: +8613360536510
When contacting us, please use the following subject line for each case.
Order+Reture/ Change
Order+Logistics damage
Order+Miss product
Order+no reason return
11000W Solar Inverter Off Grid 230V 48V Pure Sine Wave PV Input 500VDC 150A MPPT Solar Charger Built-in WIFI Support Lithium BMS
Notice:
EU customers please rest assured to buy!!
Features:
1.Buint-in Wifi For Mobile Monitoring(Android/IOS Apps Are Available)
2..Supports USB On-the-Go function
3.Lithium battery BMS support (Pylontech, Weco, Soltaro)
4.Replaceable fan design for ease of maintenance
5.Batteryless operation (single unit mode only)
6.Configurable AC/PV Outout Usage Timer And Prioritization
7.Selectable high power charging current Selectable input voltage range for home appliances and personal
8.Compatible to Utility Mains or generator input
9.Built-in anti-dust kit
10.Optional DC output for DC fan, LED bulb,router and so on
11.Parallel operation up to 6 units,Built-in parallel kit
12.Detachable LCD remote display
13.High PV input design, 500V (Voc) max input
14.inverter 11000w
MODEL |
Isolar SMW 11KW |
Rated Power |
11000VA/11000W |
Parallel Capability |
YES, 6 units |
INPUT |
|
Voltage |
230 VAC |
Selectable Voltage Range |
170-280 VAC (For Computers) 90-280 VAC (For Home Appliances) |
Frequency Range |
50 Hz/60 Hz (Auto sensing) |
OUTPUT |
|
AC Voltage Regulation (Batt. Mode) |
230VAC ± 5% |
Surge Power |
22000VA |
Efficiency (Peak) |
93% |
Transfer Time |
10 ms (For Personal Computers), 20 ms (For Home Appliances) |
Waveform |
Pure sine wave |
No Load Power Consumption |
<70W |
Dual Outputs |
Yes |
BATTERY |
|
Battery Voltage |
48 VDC |
Floating Charge Voltage |
54 VDC |
Overcharge Protection |
63 VDC |
SOLAR CHARGER & AC CHARGER |
|
Solar Charger Type |
MPPT |
Maximum PV Array Power |
11000W |
MPPT Range @ Operating Voltage |
90 ~ 450 VDC |
Maximum PV Array Open Circuit Voltage |
500 VDC |
Maxmum Solar Charge Current |
150A |
Maximum AC Charge Current |
150A |
Maximum Charge Current |
150A |
PHYSICAL |
|
Dimension, D x W x H (mm) |
147.4 x 432.5 x 553.6 |
Net Weight (kgs) |
18.4 |
Communication Interface |
USB/RS232/RS485/WiFi/Dry-contact |
OPERATING ENVIRONMENT |
|
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
Operating Temperature |
-10°C to 50°C |
Storage Temperature |
-15°C to 60°C |
STANDARD |
|
Compliance Safety |
CE |
