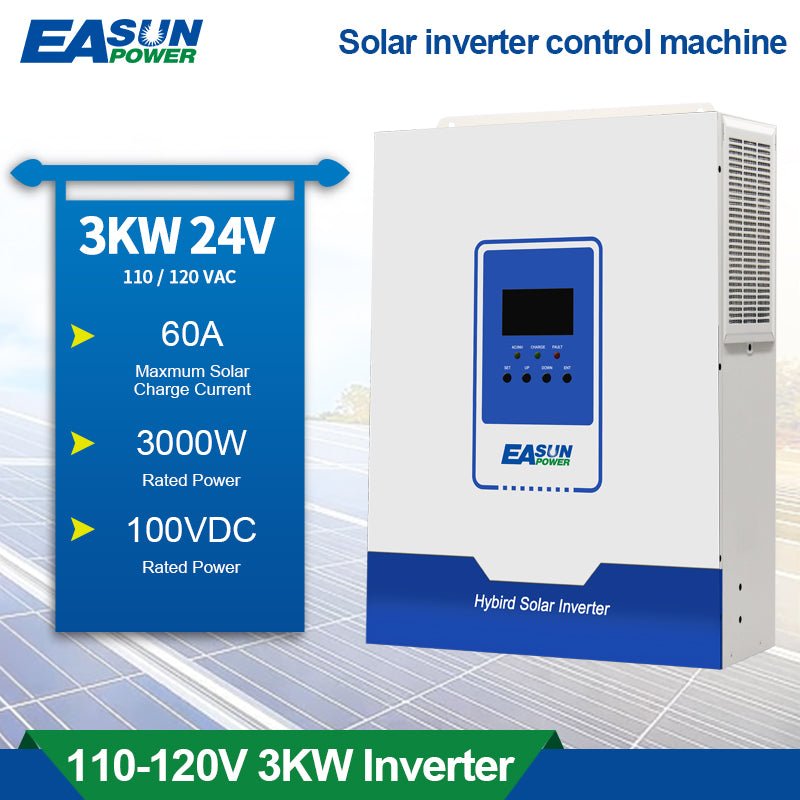

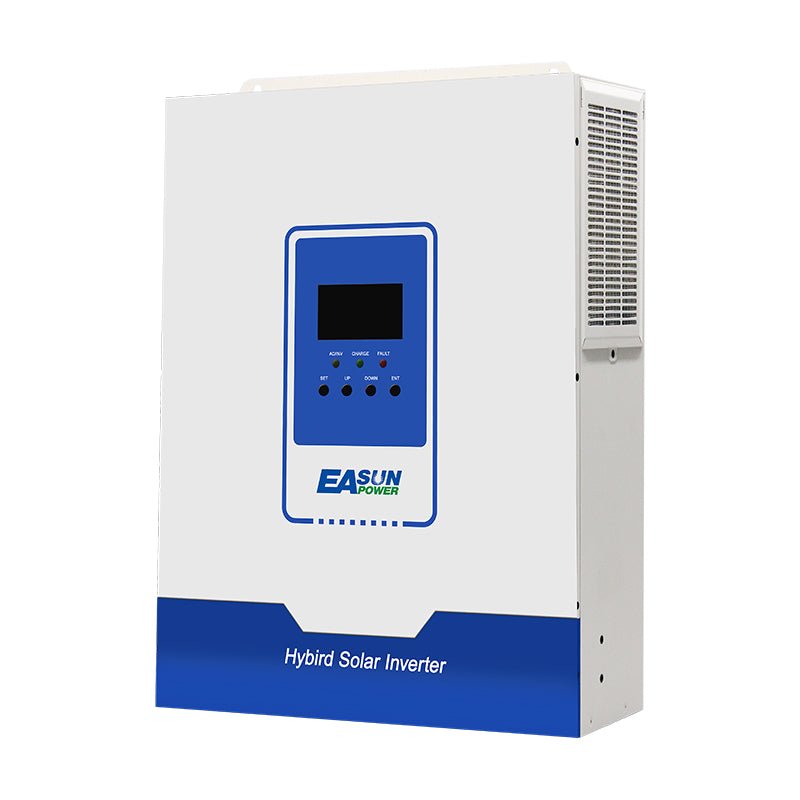

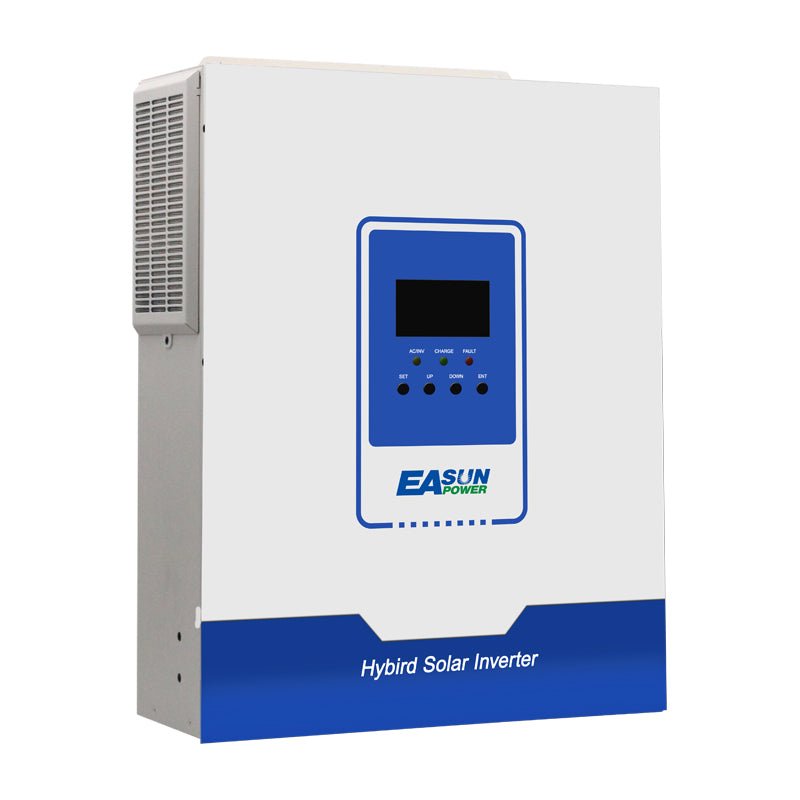

Easun power Hybrid Solar Inverter Built in 3KW 24V Pure Sine Wave Power Inverter & 100A For MPPT Charge Controller

Easun power Hybrid Solar Inverter Built in 3KW 24V Pure Sine Wave Power Inverter & 100A For MPPT Charge Controller

Regular price $450.00 CAD
Regular price Sale price $450.00 CAD
Sale Sold out
Shipping calculated at checkout.

About Shipping

1. Free Shipping

2. Usually delivery within 3-10 workd days.

Return & Refund

30-Day Return for No Reson

We have a 30-day return policy, which means you have 30 days from the date you receive the item to request a return.
To be eligible for a return, your item must be in the same condition as when you received it, unworn or unused, with tags, and in its original packaging. You will also need a receipt or proof of purchase.
To begin your return, you can contact us via email or whatsapp, but you must make a note of your order number and provide us with the return shipping number within 24 hours of confirming acceptance of the return, as well as instructions on how and where to send your package and a link to check the track of the shipping receipt.
All items sent back to us without first requesting a return will not be accepted.

Damages and problems

Please check your order first after receiving it to make sure it is in good condition. If the item is defective, damaged or you received the wrong item, please contact us immediately so we can assess the problem and correct it.


Exceptions/non-returnable items

Certain types of items cannot be returned, such as perishable items (e.g. food, flowers or plants), custom products (e.g. special orders or personalized items) and personal care items (e.g. beauty products). We also do not accept returns of hazardous materials, flammable liquids or gases. If you have questions or concerns about your specific item, please contact us.


Exchanges

The fastest way to make sure you get what you want is to return your item and purchase it separately for the new item once the return is accepted.


Refunds

Once we have received and inspected your return, we will notify you and let you know if the refund has been approved. If approved, you will automatically receive a refund in the form of your original payment within 48 hours except special issue. Please keep in mind that it will also take some time for your bank or credit card company to process and post the refund.

If the return is caused by the consumer, the consumer should be responsible for the shipping costs. The exact cost should depend on the courier company you choose.

If the goods received are damaged or incorrect due to our fault, and the consumer is not responsible for the shipping costs for this reason.

If still any questions, please contact:
Email: jessica@easunpower.com
Tel/Whatsapp: +8613360536510

When contacting us, please use the following subject line for each case.
Order+Reture/ Change
Order+Logistics damage
Order+Miss product
Order+no reason return

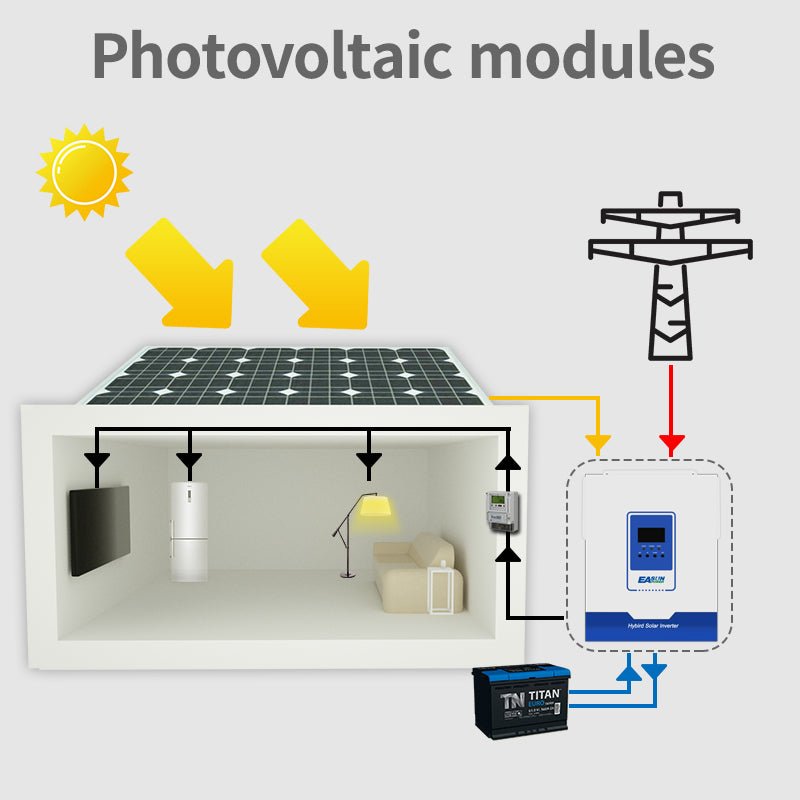

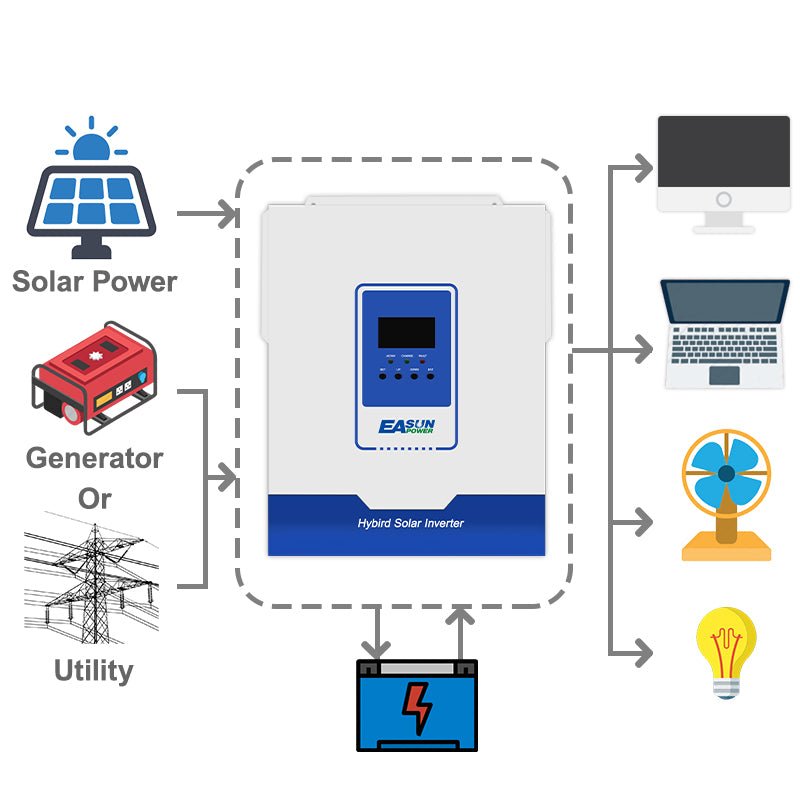

Easun power Hybrid Solar Inverter series which integrates solar energy storage & means charging energy storage and AC sine wave output. And it has advanced control algorithm, it has high response speed, high reliability and high industrial standard. Four charging modes are optional, i.e. Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging; and two output modes are available, i.e. Inverter and Mains, to meet different application requirements.
ISolar MLV 3KW-U
AC mode
Rated input voltage 110/120VAC
Input voltage range (90Vac-140Vac)±2%
Frequency 50Hz/ 60Hz (Auto detection)
Frequency Range 47±0.3Hz ~ 55±0.3Hz (50Hz)/57±0.3Hz ~ 65±0.3Hz (60Hz);
Overload/short circuit protection Circuit breaker
Efficiency >95%
Conversion time (bypass and inverter) 10ms (typical)
AC reverse protection Available
Maximum bypass overload current 40A
Inverter mode
Output voltage waveform Pure sine wave
Rated output power (VA) 3000W
Rated output power (W) 3000W
Power factor 1
Rated output voltage (Vac) 120VAC
Output voltage error ±5%
Output frequency range (Hz) 50Hz ± 0.3Hz/60Hz ± 0.3Hz
Efficiency >92%
Overload protection    102% < load <110%) ±10%: report error and turn off the output after 5 minutes;
(110% < load < 125%) ± 10%: report error and turn off the output after 10 seconds;
               Load >125% ±10%: report error and turn offthe output after 5 seconds;
Peak power 4500VA
Loaded motor capability 2HP
Output short circuit protection Circuit breaker
Bypass breaker specifications 40A
Rated battery input voltage 24V (Minimum starting voltage 22V)
Battery voltage range 20.0Vdc~33Vdc ± 0.6Vdc (Undervoltage alarm/shutdown voltage/overvoltage alarm overvoltage recovery... settable on LCD screen)
Power saving mode Load ≤25W
AC charging
Battery type Lead acid or lithium battery
Maximum charge current 60A
Charge current error ± 5Adc
Charge voltage range 18.0Vdc~33Vdc
Short circuit protection Circuit breaker and blown fuse
Circuit breaker specifications 40A
Overcharge protection Alarm and turn off charging after 1 minute
PV charging
Maximum PV open circuit voltage 100VDC
PV operating voltage range 30-100VDC
MPPT voltage range 30-95VDC
Battery voltage range 18-33VDC
Maximum output power 1600W
PV charging current range (can be set) 0-60A
Charging short circuit protection Blown fuse
Wiring protection Reverse polarity protection
Certified specifications
Certification CE(IEC/EN62109-1,-2),ROHS2.0
EMC certification level EN61000
Operating temperature range -15°C to 55°C
Storage temperature range -25°C ~ 60°C
Humidity range 5% to 95% (Conformal coating protection)
Noise ≤60dB
Heat dissipation Forced air cooling, variable speed of fan
Communication interface USB/RS485(WiFi/GPRS)/Dry node control
Size (L*W*D) 378mm*280mm*103mm
Weight (kg) 6.2
The Solor Inverter If Support App Control ?
yes, this 3000w 24V Hybrid Solar inverter support app Control.

What size inverter should I buy?

  • 1. Sizing the right power output. Inverters will be rated by a wattage value, telling you how many watts it can run at one time. For example, imagine you had a 500 Watt Fridge and 800 Watt Air Conditioning. These two items would be 1300 Watts and would require an inverter with a higher wattage than 1300W. Easun power 3000W and 5000W inverter will meet your power needs.
  • 2. Check your battery voltage. The DC voltage rating on the inverter will tell you what battery bank it is compatible with. For example, a 12V battery bank will require an inverter that is compatible with 12V DC input.
  • 3. Size your installation spaces. What area or space will you set your inverter? Make sure the inverter will fit in the space you have in mind with enough room around it for proper ventilation and no fire hazards.
