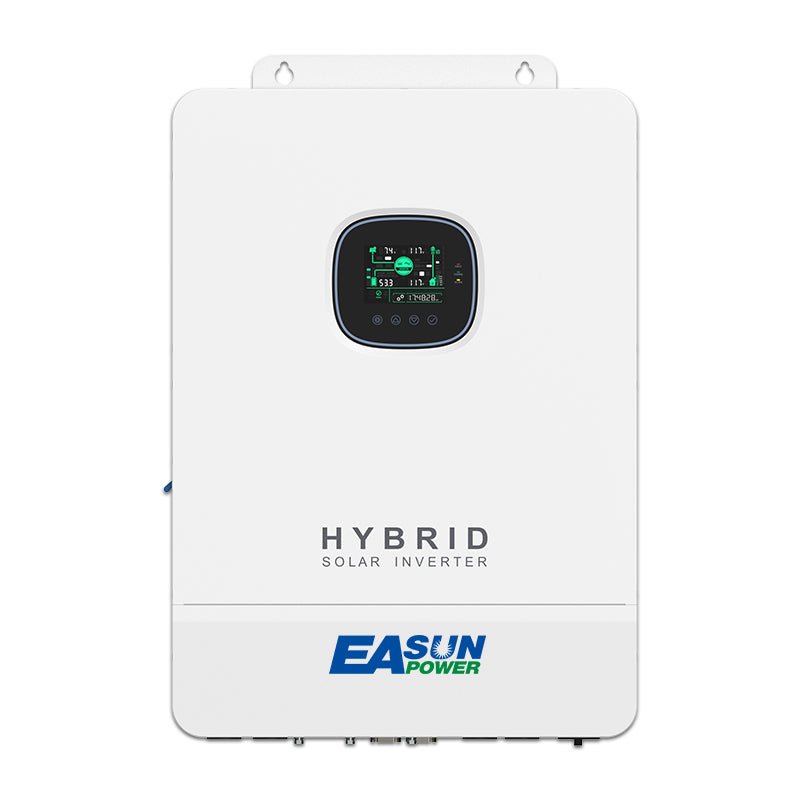

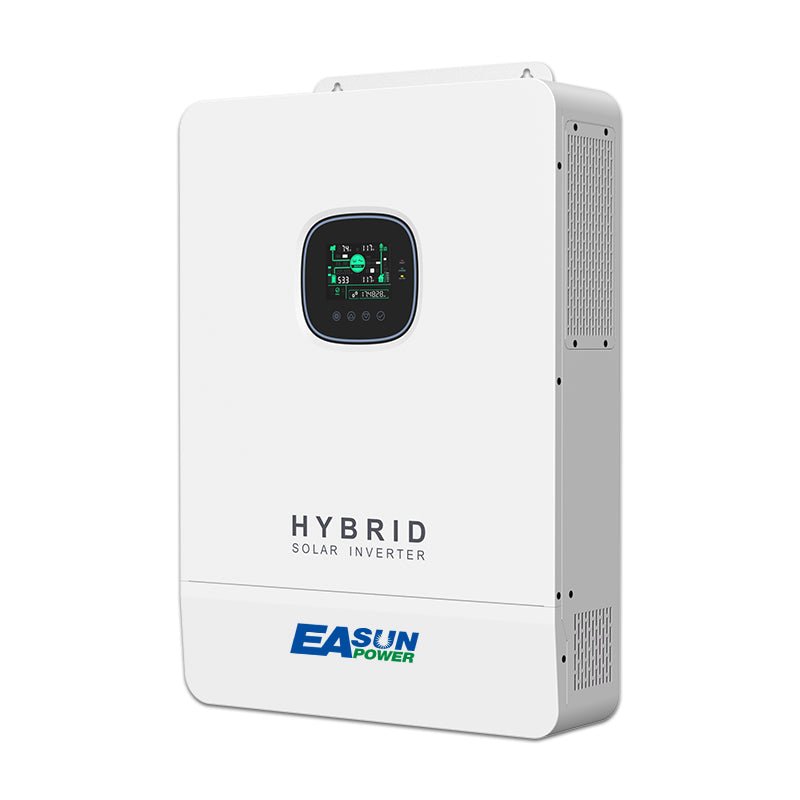

Easun 10KW Hybrid Solar inverter Off Grid 48V Inverter MPPT 200A Charge Controller 110V CA

Easun 10KW Hybrid Solar inverter Off Grid 48V Inverter MPPT 200A Charge Controller 110V CA

Regular price $1,888.88 CAD
Regular price $2,000.00 CAD Sale price $1,888.88 CAD
Sale Sold out
Shipping calculated at checkout.

About Shipping

1. Free Shipping

2. Usually delivery within 3-10 workd days.

Return & Refund

30-Day Return for No Reson

We have a 30-day return policy, which means you have 30 days from the date you receive the item to request a return.
To be eligible for a return, your item must be in the same condition as when you received it, unworn or unused, with tags, and in its original packaging. You will also need a receipt or proof of purchase.
To begin your return, you can contact us via email or whatsapp, but you must make a note of your order number and provide us with the return shipping number within 24 hours of confirming acceptance of the return, as well as instructions on how and where to send your package and a link to check the track of the shipping receipt.
All items sent back to us without first requesting a return will not be accepted.

Damages and problems

Please check your order first after receiving it to make sure it is in good condition. If the item is defective, damaged or you received the wrong item, please contact us immediately so we can assess the problem and correct it.


Exceptions/non-returnable items

Certain types of items cannot be returned, such as perishable items (e.g. food, flowers or plants), custom products (e.g. special orders or personalized items) and personal care items (e.g. beauty products). We also do not accept returns of hazardous materials, flammable liquids or gases. If you have questions or concerns about your specific item, please contact us.


Exchanges

The fastest way to make sure you get what you want is to return your item and purchase it separately for the new item once the return is accepted.


Refunds

Once we have received and inspected your return, we will notify you and let you know if the refund has been approved. If approved, you will automatically receive a refund in the form of your original payment within 48 hours except special issue. Please keep in mind that it will also take some time for your bank or credit card company to process and post the refund.

If the return is caused by the consumer, the consumer should be responsible for the shipping costs. The exact cost should depend on the courier company you choose.

If the goods received are damaged or incorrect due to our fault, and the consumer is not responsible for the shipping costs for this reason.

If still any questions, please contact:
Email: jessica@easunpower.com
Tel/Whatsapp: +8613360536510

When contacting us, please use the following subject line for each case.
Order+Reture/ Change
Order+Logistics damage
Order+Miss product
Order+no reason return






Features introduction
●Supports lead acid battery and li-ion battery connections.
●With a dual activation function when the lion battery is dormant; either mains photovoltaic power supply access can trigger the activation of the li-ion battery.

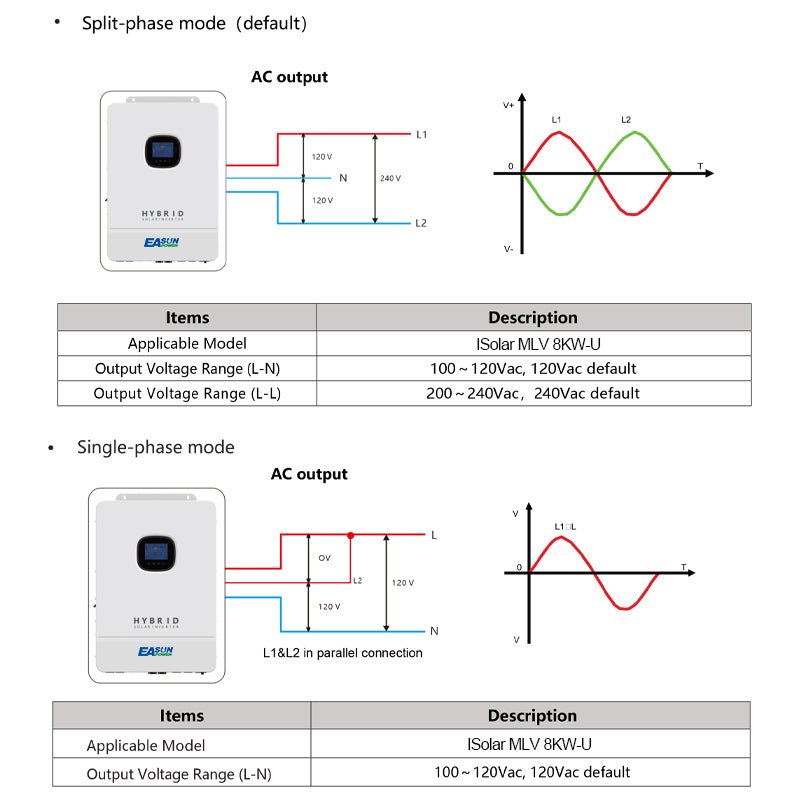

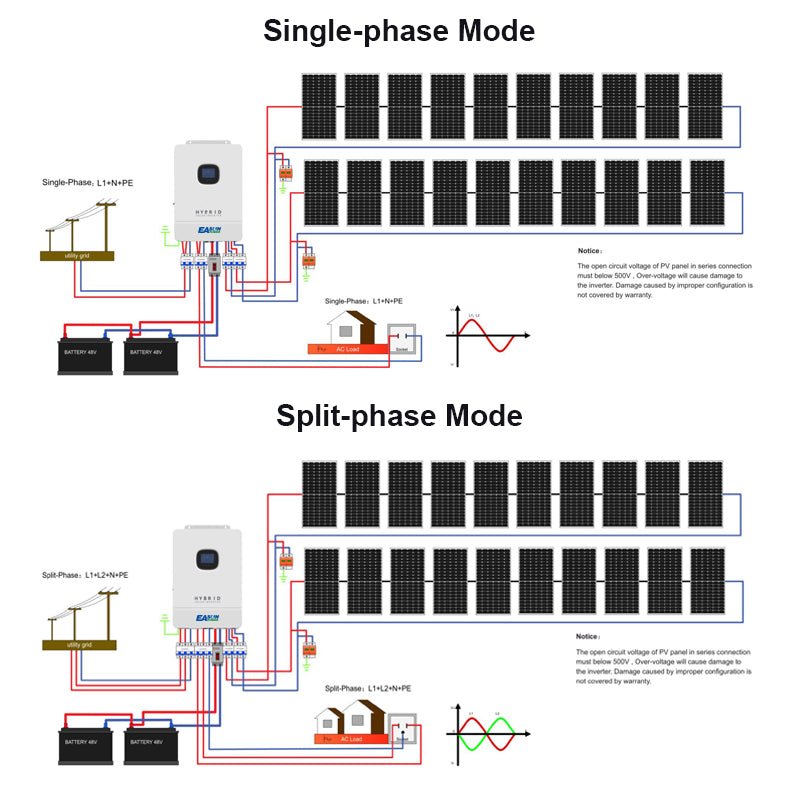

●Support split-phase and single-phase pure sine wave output.
●Supports four different voltage levels of 100Vac, 105Vac, 110Vac, and 120Vac per phase.

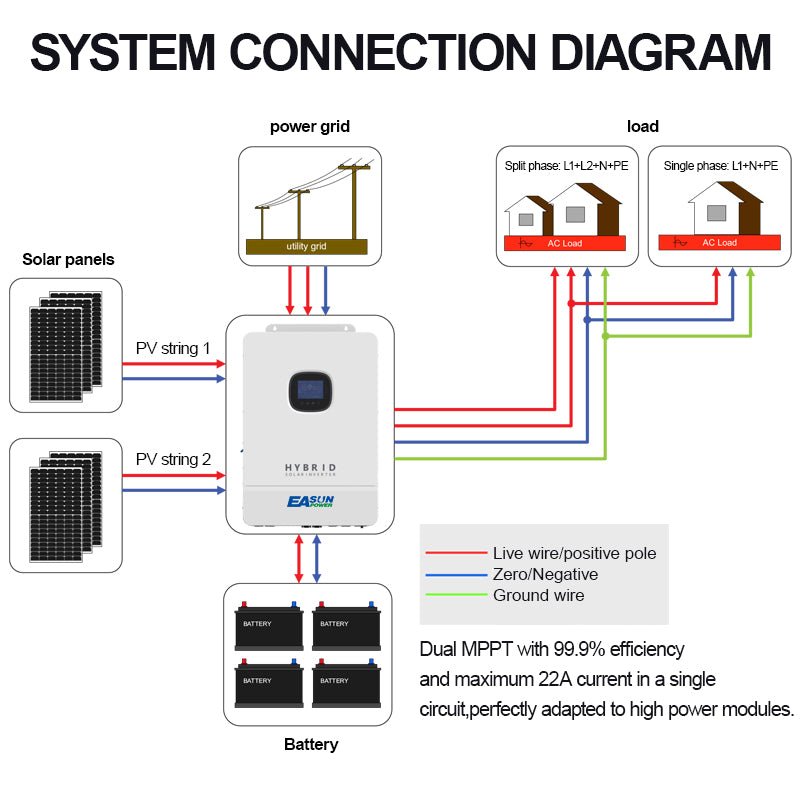

●Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity functions.
●Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high power modules.
●Energy saving mode function to reduce no-oad energy losses.
●4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV charging.
●With two output modes of utility bypass and inverter output, with uninterrupted power supply function.
●LCD large screen dynamic flow diagram design, easy to understand the system data and operation status.
IGrid MLV 8-10KW-U User Manual

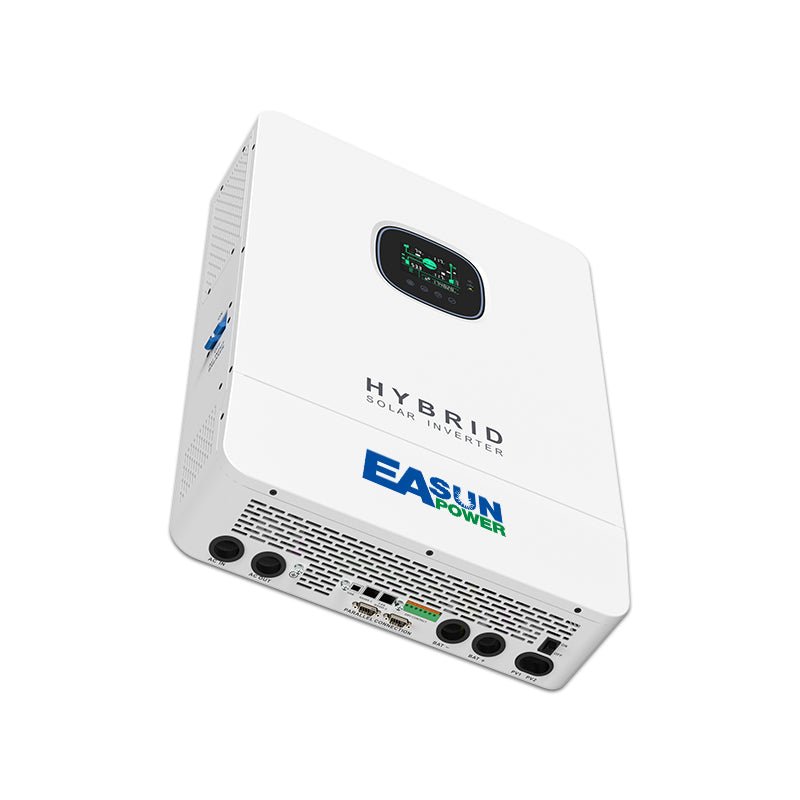

10KW Rated Power 48V Battery Voltage 200A Max Solar Charge Current Max 500VDC PV open circuit voltage Max 11000W PV array power Support split phase and single-phase pure sine wave output 4 charging modes available





10KW model supports 48VDC system model and at least 200Ah capacity battery for 10KW model.

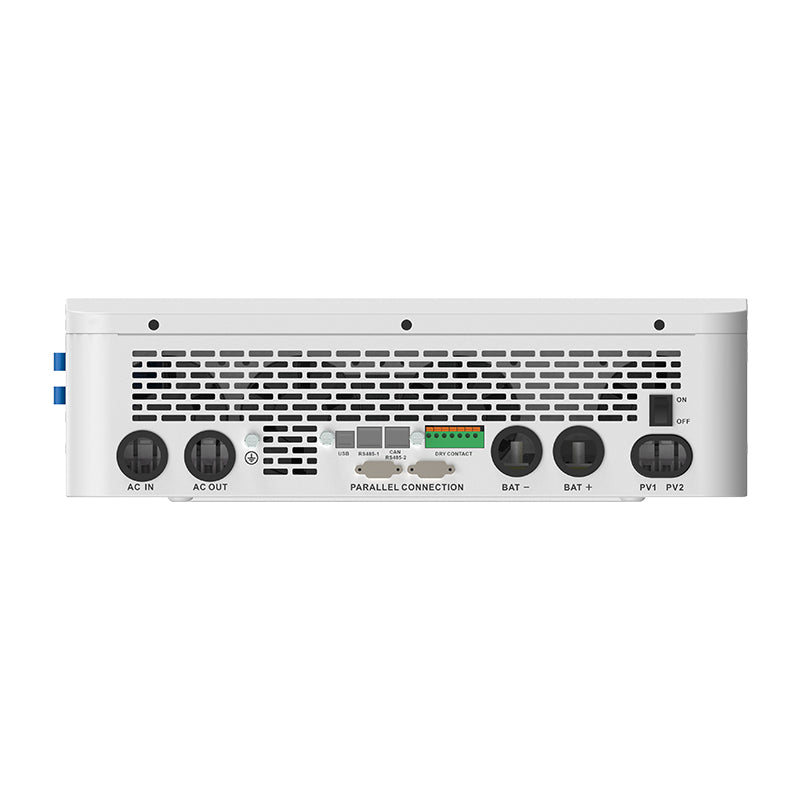

1:L .CD screen 8:AC IN (L+L+N) 2:L .ED Indicator 9:AC OUT (L+L+N) 3:Touchable keyn 10:Grounding Screw 4:AC INPUT breaker 11:USB-B port 5:ON/OFF Rocker Switch 12:RS485-1 port 6:BAT INPUT (+) 13:Dry contact 7:BAT INPUT (-) 14CAN/RS485-2 port


Model IGrid MLV 10KW-U CAN BE SET
INVERTER OUTPUT
Rated Output Power 10,000W
Max.Peak Power 20,000W
Rated Output Voltage 120/240Vac(split phase/single phase) Y
Load Capacity of Motors 6HP
Rated AC Frequency 50/60Hz Y
Waveform Pure Sine Wave
Switch Time 10ms(typical)
Parallel capacity /
Overload After triggering the overload protection the inverter will resume output after 3 minutes, 5 consecutive overloads will switch off the output until the inverter is restarted.
(102%<load<110%) ±10%: error and output shutdown after 5min;
(110% < load < 125%) ±10%: error and output shutdown after 10s. Load > 125% ±10%: error reported and output switched off after 5s.

BATTERY
Battery Type Li-ion / Lead-Acid / User Defined Y
Rated Battery Voltage 48Vdc
Voltage Range 40-60Vdc Y
Max.MPPT Charging Current 200A Y
Max.Ma ins/Generator Charging Current 120A Y
Max.Hybrid Charging Current 200A Y
PV INPUT
Num. of MPP Trackers 2
Max.PV array power 11,000W
Max.input current 22/22A
Max.Voltage of Open Circuit 500Vdc
MPPT Voltage Range 125-425Vdc
MAINS / GENERATOR INPUT
Input Voltage Range 90-140Vac
Frequency Range 50/60Hz
Bypass Overload Current 63A
EFFICIENCY
MPPT Tracking Efficiency 0.999
Max. Battery Inverter Efficiency 0.92
GENERAL
Dimensions 620*435*130mm(2*1.4*0.4ft)
Weight 21kg(46.3lb)
Protection Degree IP20, Indoor Only
Operating Temperature -10~55°C,> 45°C derated
Range (14~131°F, > 113°F derated)
Noise <60dB
Cooling Method Internal Fan
Warranty 2 Years
COMMUNICATION
Embedded Interfaces RS485 / CAN / USB/ Dry contact Y

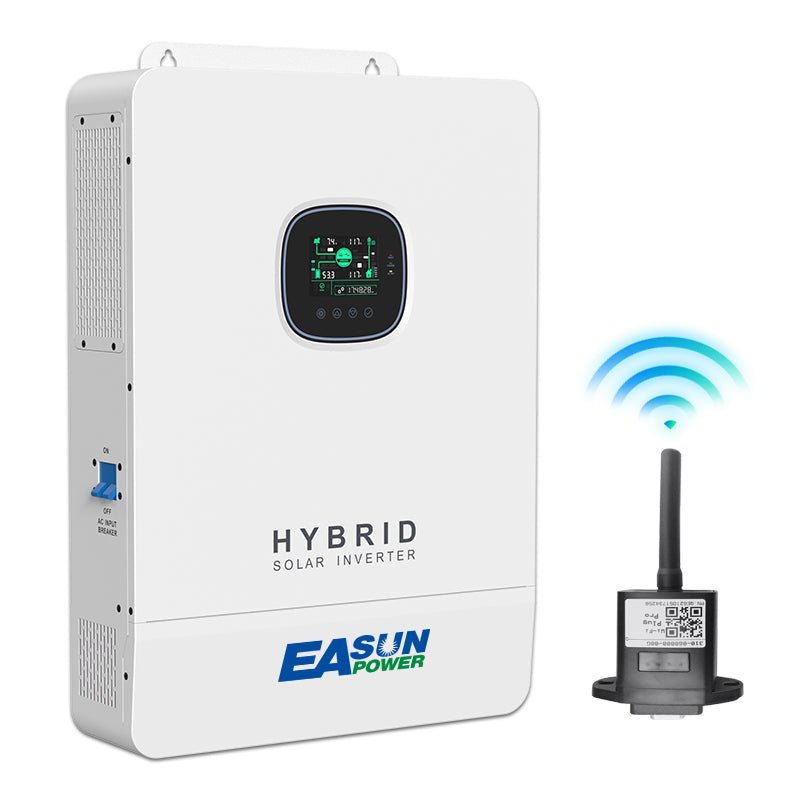

External Modules(Optional) Wi-Fi / GPRS Y
CERTIFICATION
Safety IEC62109-1, 1EC62109-2,UL1741
EMC EN61 000-6-1, EN61 000-6-3, FCC 15 class B
RoHS Yes
